    Lightweight Wireless Flat Panel DR Detector Based On Amorphous Silicon A-Si For Various Fields DR And Non-Destructive Testing

    Ask Lasest Price
    Brand Name : Huatec
    Model Number : H3543HWC-EG
    Certification : ISO,CE
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50 sets per month
    Delivery Time : 7-10 working days after payment
    • Product Details
    • Company Profile

    Lightweight Wireless Flat Panel DR Detector Based On Amorphous Silicon A-Si For Various Fields DR And Non-Destructive Testing

    Lightweight Wireless Flat Panel DR Detector Based on Amorphous Silicon(a-Si) For Various Fields DR and Non-Destructive Testing


    Electricals and interface
    A/D Conversion 16 bits

    Data Interface Gigabit Ethernet/802.11ac (only 5G)

    Acquire Time wired: 1s; wireless: 3s

    Exposure Control Software/AED
    Memory 4 GB DDR4, 8 GB SD card


    Mechanical
    Dimension 388.8×459×15 mm
    Weight 3.4kg (without battery)

    Material Aluminum andmagnesium alloys

    Front Panel Carbon fiber

    Narrowest edgedistance≤5mm


    Enviromental

    Temperature 10-35°C (operating);-10~50°C (storage)

    Humidity 30-70% RH (non-condensing)

    Ingress Protection IP51 (Customized to IP67)


    Sensor
    Receptor Type a-Si

    Scintillator Gos / CsI:TI

    Active Area 350 x 430 mm

    Resolution 2560 x 3072

    Pixel Pitch 139 μm


    Power Supply & Battery

    Adapter In AC 100-240V,50-60Hz

    Adapter Out DC 24V,2.7A

    Power Dissipation <20 W

    Standby Time 6.5h

    Recharge Time 4.5 h


    Image Quality
    Limiting Resolution 5 LP/mm

    Energy Range 40-160 KV

    Dynamic Range ≥76 dB

    Sensitivity ≥0.36LSB/nGy

    Ghos <1% 1st frame

    DQE 38% @(1 LP/mm)

    21% @(2 LP/mm)

    MTF 75% @(1 LP/mm)

    48% @(2 LP/mm)

    28% @(3 LP/mm)

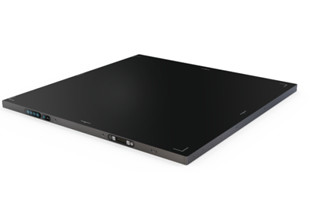

    Quality Lightweight Wireless Flat Panel DR Detector Based On Amorphous Silicon A-Si For Various Fields DR And Non-Destructive Testing for sale
