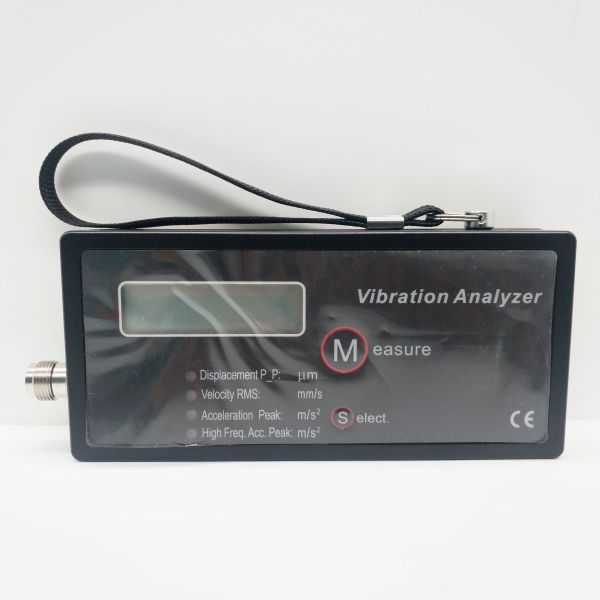

Portable Automatic Shutdown Double Probe Hand-Held Vibration Meter
HG-908
Features:
Small size, transducer included,
True RMS measurement.
Measuring parameters: vibration velocity, displacement,acceleration
and high-frequency acceleration Battery powered,
Accelerometer may be integrated or external cable connected.
One button control both power and measurement.Very easy to use.
3 1/2 LCD digital display, sampling per second.
Holding function. Automatic power off.
Suitable for monitoring machinery vibration caused by
imbalance,misalignment, gear & bearing faults and etc.
Specifications:
Testing ranges:
Displacement 1—1999 m m (or 200 mil) Eq. peak-peak
Velocity 0.1—199.9 mm/s (or 20 in/s) true RMS
Acceleration 0.1—199.9 m/s2 (or 20 g) Eq. Peak
High Frequency Acceleration: 0.1—199.9 m/s2 (or 20 g) Eq. Peak
Overall accuracy: ±5%
Temperature range: 0 - 50°C
Frequency response:
Displacement 10-1000Hz
Velocity 10-1000Hz
Acceleration 10-1000Hz (908B) 105000Hz (908)
High Frequency Acceleration: 1000-5000Hz 10%
Configuration:
HG908: Separate accelerometer with magnetic mount & probe, long
needle probe
Battery: 9V 6F22/Rechargeable, 25/10 hours of continuous operation.
Pickup: Accelerometer with handheld probe and/or magnetic mount
Dimensions: 13×6×2.3 cm; Weight: 200 g
Optional Intrinsically safe version with internal accelerometer
| HG908 | Separate accelerometer with magnetic mount & probe, long needle
probe |
| Battery | 9V 6F22/Rechargeable, 25/10 hours of continuous operation. |
| Dimensions | 13×6×2.3 cm; Weight: 200 g |
| Pickup | Accelerometer with handheld probe and/or magnetic mount |
1.Preparation
1). Check the voltage of the battery:
Press M<easure> key, observe the display on the screen. If
there is an arrow on the top left corner, you need to replace the
battery with a new one.
2). Set-up probe
HG908 with outside accelerometer has 1 probe and 1 magnetic mount.
When changing, take hold of the accelerometer to avoid rotation and
damage of the cable.
2.Measurement
1). Select the measure parameters:
HG908 has 4 vibration parameters. They are:
a) Displacement(unit: mm=1/1000 mm): Equivalent peak-peak value
b) Velocity (unit: mm/s) : True RMS Value;
c) Acceleration (unit: m/s2): Equivalent peak
d) High Frequency Acceleration (unit: m/s2): Equivalent peak
2). Functions of the M<easure> key:
a).Key press: Power on and begin measuring;
b).Key release: Hold the last measured value for twenty seconds and
then power off automatically.
3). Stick the probe to the measured object (the pressure should be
about 0.5-1 kg.)
3. Notes
1). Avoid intense impact, high temperature and immersed in water.
2). Keep the sensor plug clean and dry, and use it carefully.
3). Install the battery:
a) Open the small back cover of battery cabinet (2 screws at the
end far away from the sensor at backside, see figure);
B) Place a battery (6F22, 9V) correctly according to the polarity;
C) Close the back cover and screw the tightly;
D) If it has been put aside long-term, please take out the battery
To avoid the battery liquid;
4) If the sensor has been used for over one year,
please re-calibrate the sensor and the meter together to ensure the
precision.
4. Specifications
1). Measurement condition:
Temperature: 0oC -45oC, Humidity<
85%, Non-causticity environment,
without strong electric-magnetic field & strong impact. It can be
used in industry location by controlling the EMC
environment throughout installation and/or usage.
2). Amplitude Ranges:
Below 1 1999 m peak - peak (*)
True RMS Velocity 0.1 199.9 mm/s
Acceleration and High Frequency Acceleration:
0.1 199.9 m/s2 peak (*)
*Note: peak-peak and peak are equivalent value means:
peak-peak=2.828*RMS while peak=1.414*RMS
3). Accuracy: 5% of display digit 2
Noise Level (without input): ACC<
0.3 m/s2, VEL<
0.5 mm/s, Disp<
3 m
Frequency response accuracy: 5%;
( 10% for ACC 4.5 kHz - 10 kHz)
Non - linearity: 5%
4). Sensor type: Shear type Piezoelectric Accelerometer
5). Frequency Response: 101000Hz (Inside Accelerometer)
105000Hz (Outside Accelerometer, Page on Model)
High Frequency Acceleration: 1000-5000Hz 10%
6). Battery: 9V 6F22, 25 hours of continuous operation.
7). The Configuration:
Standard: Outside accelerometer with magnetic mount and probe
Optional: Inside Accelerometer with 2 handheld probes
8). Dimensions: 13 6 2.3 cm;
Weight: 250 g.
