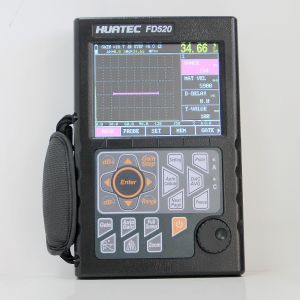

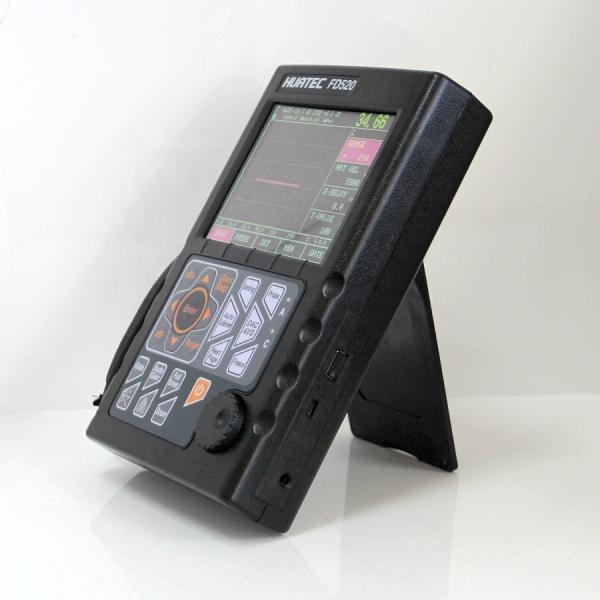

    ABS Digital Ultrasonic Flaw Detection Equipment Ndt

    Ask Lasest Price
    Brand Name : HUATEC
    Model Number : FD520
    Certification : ISO
    Price :
    Payment Terms : T/T, Western Union/Paypal
    Supply Ability : 500pcs per months
    • Product Details
    • Company Profile

    ABS Digital Ultrasonic Flaw Detection Equipment Ndt

    Digital ultrasonic flaw detector NDT flaw detector


    Automated calibration,Automated gain

    DAC,AVG,TCG,B scan,AWS

    High-speed capture and very low noise

    • Title
    ParameterTitleParameter
    Measuring Range(mm)0 ~ 10000Measurement ModeSingle,Dual,Thru
    Vertical Linearity Error≤3%Reject0~80%
    Horizontal Linearity Error≤0.1%Pulse Displacement(μs)-20 ~ +3400
    Sensitivity Leavings≥62dBZero(μs)0.0 ~ 99.99
    Dynamic range≥32dBPort TypeBNC(Q9)
    Resolving Power≥36dBOperating Temperature (℃)-20~50
    Frequency Range(MHz)0.5 ~ 15H×W×D(mm)240×156×48
    Gain(dB)0 ~ 110Weight(kg)1.0(with battery)
    Material Velocity(m/s)1000 ~ 15000

    Standard Delivery:

    Main unit 1pc

    2.5MHZ-ф20 straight probe 1pc

    4MHZ-8x9mm 1pc

    60degree angle probe 1pc

    4A/9Vpower adapter 1pc

    Probe connection cable (BNC to BNC) 1pc

    Probe connection cable (BNC to Lemo 00) 1pc

    Instruction manual 1pc

    Carrying case 1pc

    RS232-USB converter 1pc
